Beskrivelse

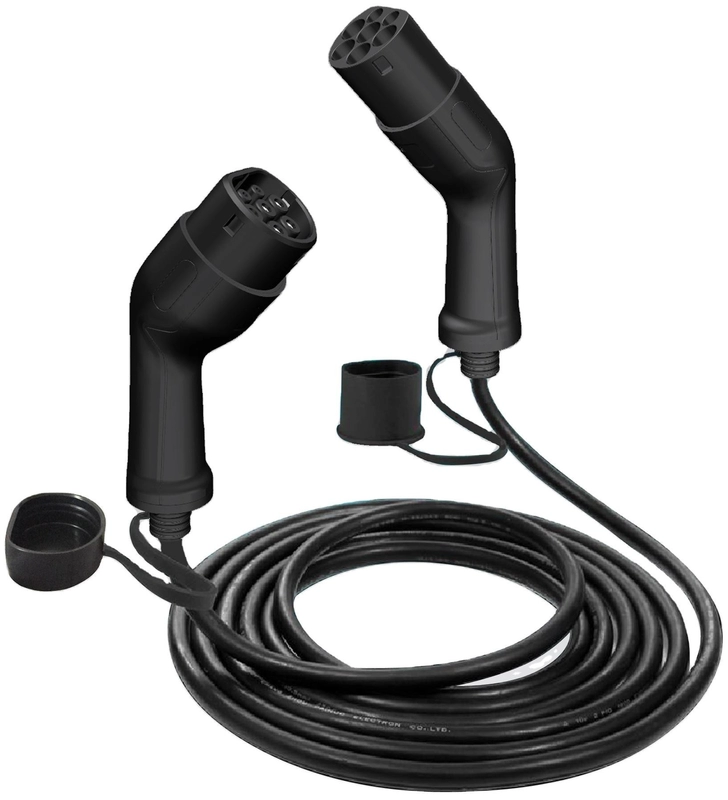

Bestselger – Mode 3 Kabel 32A 3-fase (22 kwh), type 2, (7,5 m) – TPU kvalitet (bedre/dyre kvalitet enn TPE)
Dette er vår budsjett serie og presenterer god kvalitet til markedsledende lavpris.
Product Specification:
Model: BUDM3T2A32P3M7,5
Standard: Type 2 mode 3
Certificate: TUV, CE
Current: 32A (22 kwh) 3-fase
Length: 7,5 meter
IP66
Colour: Black
Cable: Straight
Material: TPU
EAN: 7090057831187 |
Package measurement and weight:
Item No: BUDM3T2A32P3M7,5
Packages: 1 carton inner box
Packing Size: 42*38*8(cm)
Weight: 4,5 kg
Product professional data:
Service life:>20000 times
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Withstand voltage: 2500V
Contact impedance: 0.5m Ω Max
Working temperature: -40°C ~+ 55°C
Shell Material: TPU Thermo Plastic (Insulator inflammability UL94 O)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
Cable spec: 5*6.0mm² +2*0.5mm²
Cable diameter: 18(mm)
